SPX-6550DV dual view X ray baggage scanner(x-ray screening)
Application: Train Stations, Metro station, Jail house, Office buildings; Shopping malls; Factories, etc; Features: Dual view, Updated software Wins 7, reliable performance
Модель:
Product description

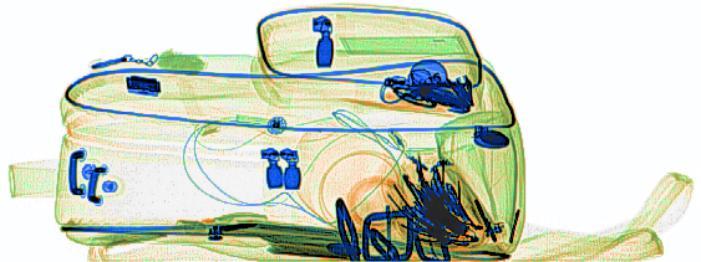

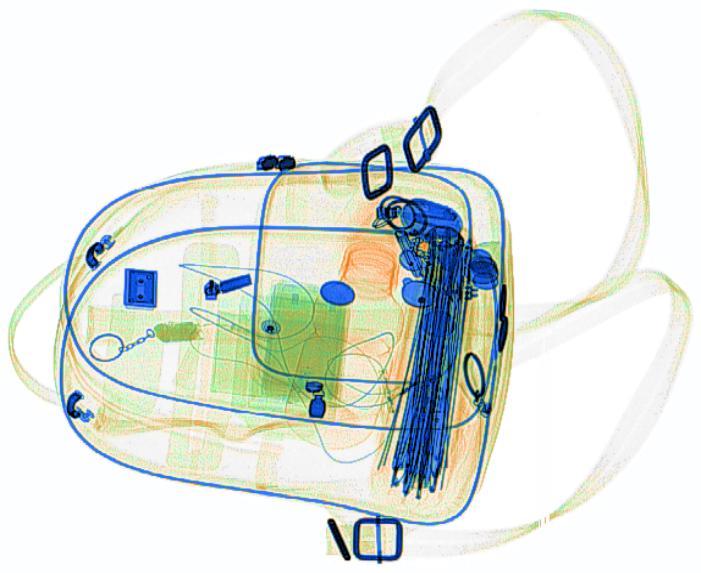

*Excellent image presentation
*Windows 7, 64-bit operation system
*Dual View x ray generator, dual view technology to improve the security efficiency
SPX-6550DV medium size dual view X ray baggage scanner
◆ Suitable for security inspection of briefcase, hand luggage, postal parcels and other small packages.
◆ Application field: Train Stations; Metro Station; Jail House ; Embassy; Boarder check points; Entertainment venues; Tourist attractions; Office buildings; Shopping malls; Factories, etc;
High Light
◆ Powerful image dealing ability;
◆ Accurate Z7,Z8,Z9 mark for explosive and narcotics;
◆ Windows 7 operation system；
◆ Automatic save scanned image;
◆ Friendly operation System;
◆ Reliable performance.
Technical characteristics
◆ Dural energy penetration system;
◆ TIP program;
◆ Clear and distinct image;
◆ Scanned imaged can zoom up to 64 times;
◆ Partly zoom up to 3 times;
◆ 13 kinds of image processing functions and 6 kinds of pseudo color;
|
Tunnel size |
653*505mm (w*h) |
|
Conveyor speed |
0.20m/s |
|
Conveyor height |
693mm |
|
Max Load |
150kgs |
|
Wire Resolution |
38AWG |
|
Spatial resolution |
vertical：diameter 1.0mm，horizontal：diameter 1.0mm |
|
Penetration |
35mm steel panel |
|
Monitor |
21.5 inch，High resolution 1280*1024 |
|
X Ray generatoranode voltage |
160KV (Working at 150KV) |
|
X ray generator |
2 |
|
Beam direction |
Bottom/side |
|
Cooling/operation cycle |
Oil Cooling /100% |
|
X ray Dose per inspection |
< 1.14USv |
|
Image processing |
Pseudo color/black & white image，Negative Image, High Penetration, Super-enhancement, histogram equalization, check back/forward, Automatic save image |
|
Zoom |
Variable zoom up to X64, support continuous magnification. |
|
Image Checking |
Continuous check back image |
|
Storage capacity |
Can store more than 100000 image |
|
Radiation leakage |
<0.5 USv/h（5cm away from fame），in full compliance with all international radiation safety requirements. |
|
Film safety |
In accordance with ASA/ISO1600 film safe standard |
|
System function |
F1,F2,F3 programmable key，high density alarm，TIP；date/time display，baggage Count，User management, System work timing, Radiation timing, self-inspection while power on, save and search image, automatically maintenance and diagnosis system, image recognition training. |
|
Optional function |
Video surveillance system, LED prompt screen, bi-direction scan, voltage stabilizer, UPS back up |
|
Frame size |
2043*901*1384mm (L*W*H） |
|
Weight |
600kg |
|
Environment temperature/humidity |
- 3℃～+40℃ / 5%～95%（non-condensing） |
|
Storage temperature/humidity |
-43℃～+60℃ / 5%～95%（non-condensing） |
|
Power |
220VAC (+/-10%) 50+/-3HZ |
|
Consumption |
0.7KvA |
|
Noise Level |
<55db |
Main Frame Outsize
