SPX-6550 medium size X ray baggage scanner for hotels bank security check(x ray scanning Device)
*Outstanding image quality *Designed to screen small- to mid-sized items for weapons, explosives, drugs and other contraband. Application: Train Stations; Metro Station; Jail House ; Embassy; Boarder check points; Entertainment venues etc Features: Windows 7; Accurate Z7,Z8,Z9 mark for explosive and narcotics
Модель:
Xray baggage scanner
Product description
SPX6550 medium size X ray baggage scanner for hotels bank security check
High Light
◆ Powerful image dealing ability;
◆ Outstanding image quality;
◆ Accurate Z7,Z8,Z9 mark for explosive and narcotics;
◆ Windows 7 operation system；
◆ Automatic save scanned image;
◆ Friendly operation System;
◆ Reliable performance.
Technical characteristics
◆ >Dural energy penetration system;
◆ TIP program;

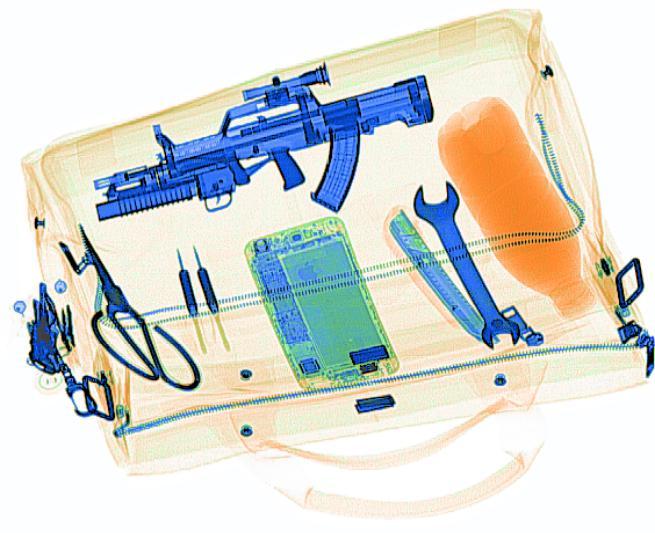

◆ Clear and distinct image;
◆ Scanned imaged can zoom up to 64 times;
◆ Partly zoom up to 3 times;
◆ 13 kinds of image processing functions and 6 kinds of pseudo color;
Technical parameters：
|
Tunnel size |
653*505mm (w*h) |
|
Conveyor speed |
0.20m/s |
|
Conveyor height |
693mm |
|
Max Load |
150kgs |
|
Wire Resolution |
38AWG |
|
Spatial resolution |
vertical：>>diameter 1.0mm>>，horizontal>：diameter 1.0mm> |
|
Penetration |
35mm steel panel |
|
Monitor |
21.5 inch，>>High >>resolution 1280*1024 |
|
X Ray generatoranode voltage |
160KV (Working at 150KV) |
|
Cooling/operation cycle |
Oil Cooling /100% |
|
X ray Dose per inspection |
< 1.14>>U>>Sv |
|
Image processing |
Pseudo color/black & white image，>>Negative Image, High Penetration, Super-enhancement, histogram equalization, check back/forward, Automatic save image |
|
Zoom |
Variable zoom up to X64, support continuous magnification. |
|
Image Checking |
Continuous check back image |
|
Storage capacity |
Can store more than 100000 image |
|
Radiation leakage |
<0.5 >>USv/h>>（5cm away from fame>），>in full compliance with all international radiation safety requirements.> |
|
Film safety |
In accordance with ASA/ISO1600 film safe standard |
|
System function |
F1,F2,F3 programmable key，>>high density alarm>>，TIP>；date/time display>，baggage Count>，User management, System work timing, Radiation timing, self-inspection while power on, save and search image, automatically maintenance and diagnosis system, image recognition training.> |
|
Optional function |
Video surveillance system, LED prompt screen, bi-direction scan, voltage stabilizer, UPS back up |
|
Frame size |
2043*901*1384mm (L*W*H）> |
|
Weight |
500kg |
|
Environment temperature/humidity |
- 3℃～>>+40℃ / 5%>>～95%>（non-condensing>） |
|
Storage temperature/humidity |
-43℃～>>+60℃ / 5%>>～95%>（non-condensing>）> |
|
Power |
220VAC (+/-10%) 50+/-3HZ |
|
Consumption |
0.7KvA |
|
Noise Level |
<55db |
