SPX-5030C X-Ray Baggage scanner （x ray baggage inspection system）
◆ Windows 7 operation system； ◆ With independent industrial computer； ◆ Professional multi-function operation keyboard; ◆ Automatic save scanned image; ◆ Reliable performance;
Модель:
Product description
*Quickly detect prohibited items in real time without opening the package
*Mainly detection to the briefcase, backpack, small packages and mail
Description: Software intelligent & Safety Hardware
COLOR image
High penetration and resolution
Assist to find explosives and drugs
High Light
-
Black white and Color display
-
Windows 7 operation system；
-
With independent industrial computer；
-

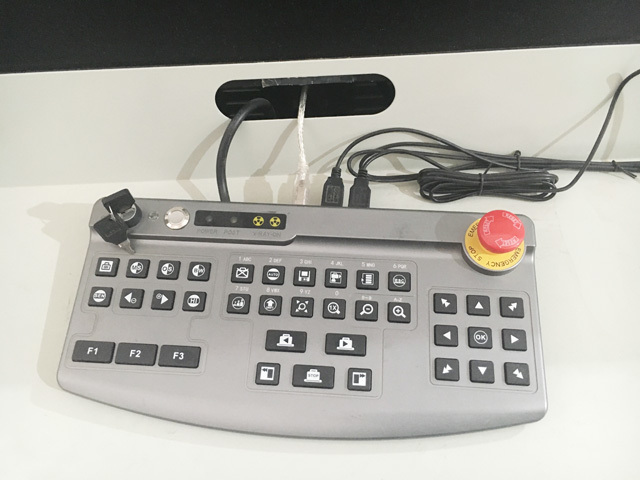

Professional multi-function operation keyboard;
-
Automatic save scanned image;
-
Reliable performance;
-
Friendly Image processing interface
Technical Characteristics
-
Dual energy penetration system;
-
New radiation protection technology;
-
TIP program;
-
Organic and inorganic imaging
-
Clear and distinct image;
-
Scanned imaged can zoom up to 32 times
-
Integrated structure design, refinement appearance
-
Accurate Z7,Z8,Z9 mark for explosive and narcotics
Application Field:
-
Entertainment venues, tourist attractions, office buildings, shopping malls, factories, etc;
-
Suitable for security inspection of briefcase, hand luggage, postal parcels and other small package.
|
Tunnel size |
504*320mm (w*h) |
|
Conveyor speed |
0.20m/s |
|
Conveyor height |
693mm |
|
Max Load |
100kgs |
|
Wire Resolution |
38AWG |
|
Spatial resolution |
vertical：diameter 1.0mm，horizontal：diameter 1.0mm |
|
Penetration |
14-16mm steel panel |
|
Monitor |
17inch，resolution 1280*1024 |
|
X Ray generator anode voltage |
100KV |
|
Cooling/operation cycle |
Oil Cooling /100% |
|
X ray Dose per inspection |
<0.16 μSv |
|
Image processing |
Pseudo color/black &white image, Negative Image, High Penetration,Super-enhancement, histogram equalization, check back/forward, Automatic save image |
|
Zoom |
Variable zoom up to X32, support continuous magnification. |
|
Image Checking |
Continuous check back image |
|
Storage capacity |
Can store more than 100000 image |
|
Dose per inspection |
<0.125 μSv |
|
Radiation leakage |
<0.4 μSv/h（5cm away from fame）in full compliance with all international radiation safety requirements. |
|
Film safety |
In accordance with ASA/ISO1600 film safe standard |
|
System function |
F programmable key，high density alarm，TIP；date/time display，baggage Count，User management, System work timing, Radiation timing, self-inspection while power on, save and search image, automatically maintenance and diagnosis system, image recognition training. |
|
Optional function |
Video surveillance system, LED prompt screen, bi-direction scan, voltage stabilizer,UPS back up |
|

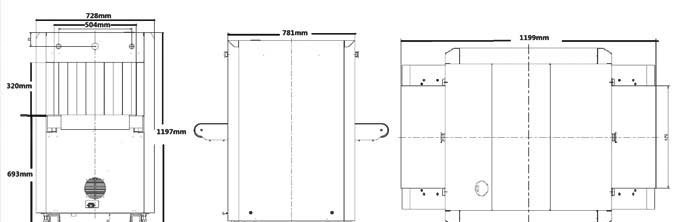

Frame size |
1199*728*1197mm (L*W*H） |
Operating Environment:
◆ Operation temperature/Humidity: - 3℃～+40℃±2℃ / 5%～95%（non-condensing）
◆ Storage Temperature/Humidity: -43℃～+60℃±2℃ / 5%～95%（non-condensing）
◆ Operation Power: 220VAC(±10%)50±3Hz (Optional: 100VAC,110VAC,120VAC,200VAC)
◆ Consumption: 0.4KvA
◆ Noise: <55db
◆ Dimensions (L×W×H) :132cm * 86cm * 140cm
◆ G.Weight: 260Kg
◆ Packing Volume: 1.6CBM
Computer Character:
◆ CASE: X64
◆ Power: 300W
◆ Main board: Intel ITX-M100_618 VER:1.1
◆ CPU: Intel(R) Celeron(R) 1037U @ 1.80GHz
◆ Storage: 2GB Samsung DDR3L 1600MHz CE
◆ Video Card: Intel Ivy Bridge Graphics Controller, 64 MB
◆ Hard Disk: 500G Hitachi HGST
◆ Computer system: Windows 7 SP1 (DirectX 11)
X-ray Generator:
◆ Anode Voltage: 100kv
◆ Anode power: 0mA
◆ Generate angle: 80 degree downward
◆ Brand: Kv-TEC, Beijing, China
◆ Generate direct: from bottom to top
◆ Cooling / Duty Cycle: Oil Cooling /100%
Other Characters:
◆ Detect PCB board: DT
◆ Extension Rollers: customize size length
◆ Support card reader operator access
◆ CD DVR/RW unit: Optional
◆ Computer system: Windows 7 operation system
◆ Monitor: 17 inch monitor
Application field:
◆ Entertainment venues, tourist attractions, office buildings, shopping malls, factories, etc;
◆ Suitable for security inspection of briefcase, hand luggage, postal parcels and other small package.
Certificates: ☆ISO19001 ☆ISO14001 ☆OHSMS18001 ☆CE ☆Health Inspection Report ☆Computer Software
Copyright Registration Certificate ☆Software Product Registration Certificate☆ Certificate from Ministry of Public Security
☆Safety and Police Electronic Products Quality Inspection Center
