SPX-100100DV Dual view X ray security inspection system for large size parcels
Application: Customs, ports, border stations, railway stations, military, express, postal, road industry Features: Dual view for large size parcels
Модель:
Product description
SPX-100100DV Dual view X ray security inspection system for large size parcels
A new type X-ray Baggage Scanner. It integrated two x ray generators, two sets of detector boards.
*Excellent image presentation
*Windows 7, 64-bit operation system
*Dual View x ray generator, dual view technology to improve the security efficiency

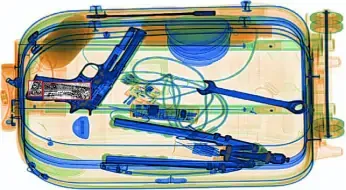

Scanning Image
First View Angle Second View Angle
High Light
-
Powerful image dealing ability;
-
Accurate Z7, Z8, Z9 mark for explosive and narcotics;
-
Windows 7, 64-bit operation system；
-
Automatic save scanned image;
-
Friendly operation System;
-
Reliable performance.
Smart Helmet
-
Dual x ray generator, dual view technology to improve the security efficiency
-
Duel energy penetration system;
-
TIP program;
-
Clear and distinct image;
-
Scanned imaged can zoom up to 64 times;
-
Partly zoom up to 3 times;
-
13 kinds of image processing functions and 6 kinds of pseudo color;
Specifications
|
Tunnel size |
1010mm*1005mm (W*H) |
|
Conveyor speed |
0.20m/s |
|
Conveyor height |
300mm |
|
Maximum load |
200kgs(evenly distributed） |
|
Wire resolution |
40AWG（dia 0.0787mm wire） |
|
Spatial resolution |
Level: dia1.0mm copper wire, Vertical: dia1.0mm copper wire |
|
Penetration(steel) |
38mm guarantee, 40mm typical |
|
Penetration resolution |
32AWG（0.202mm) |
|
Display |
21.5 inch color LCD monitor，high resolution: 1280*1024 |
|
X Ray generator anode voltage |
140-160Kv |
|
Cooling cycle |
Oil Cooling /100% |
|
X ray dose per inspection |
<1.0 μSv |
|
X ray generator |
2 |
|
Beam direction |
top/side |
|
Image process |
Black and white / color, anti-color, high energy penetration, super enhancement, histogram equalization, forced scanning, magnifying glass, image pull back / front pull, image storage |
|
Material classification |
Organic：orange；Inorganic：blue；Mixed and light metal：green |
|
Section and magnification |
Any area selection，1 -32 times magnification, support continuous amplification |
|
Image pull back |
Can pull back 50 images |
|
Storage capacity |
Can store at least 100000 pcs image |
|
X ray leakage |
<0.5 μSv/h(at a distance of 5cm From external housing），meet all international and domestic health and safety standards |
|
Film safety |
guarantee ASA/ISO1600 Film |
|
Software system |
F1,F2,F3 programmable key，high density alarm，TIP；date/time display， baggage Count，User management, System work timing, Radiation timing, self-inspection while power on, save and search image, automatically maintenance and diagnosis system, image recognition training. |
|
Optional function |
Video surveillance system, LED prompt screen, bi-direction scan, voltage stabilizer, UPS back up |
|
Physical size |
3595.5*1685*1795mm (L*W*H) |
|
Weight |
1480kgs |
|
Operation temperature/Humidity |
0℃+/-3℃～+40℃+/-2℃ 5%～95%（non-condensing） |
|
Storage Temperature/Humidity |
40℃+/-3℃～+60℃+/-2℃ 5%～95%（non-condensing） |
|
Operation power |
220VAC (+/-10%) 50+/-3HZ |
|
Power consumption |
2.0KvA |
|
Noise |
Less than 55db |
Operation Console
Perspective 1
Perspective 2
Application
-
Designed to screen BIG size luggage for to find weapons, explosives, drugs and other contraband
-
Application field: Train Stations; Metro Station; Jail House ; Embassy; Boarder check points; Entertainment venues; Tourist attractions; Office buildings; Shopping malls; Factories, etc.
Our Frame Outsize
Applications
Customs, ports, border stations, railway stations, military, express, postal, road industry, government agencies and other key places of continuous, long security checks
Applicable to large places of traffic, scanning large size parcels
