SPX-100100(x-ray security machine sales)
Applications:Customs, ports, border stations, railway stations, military, express, postal, road industry, government agencies and other key places of continuous, long security checks
Модель:
Product description

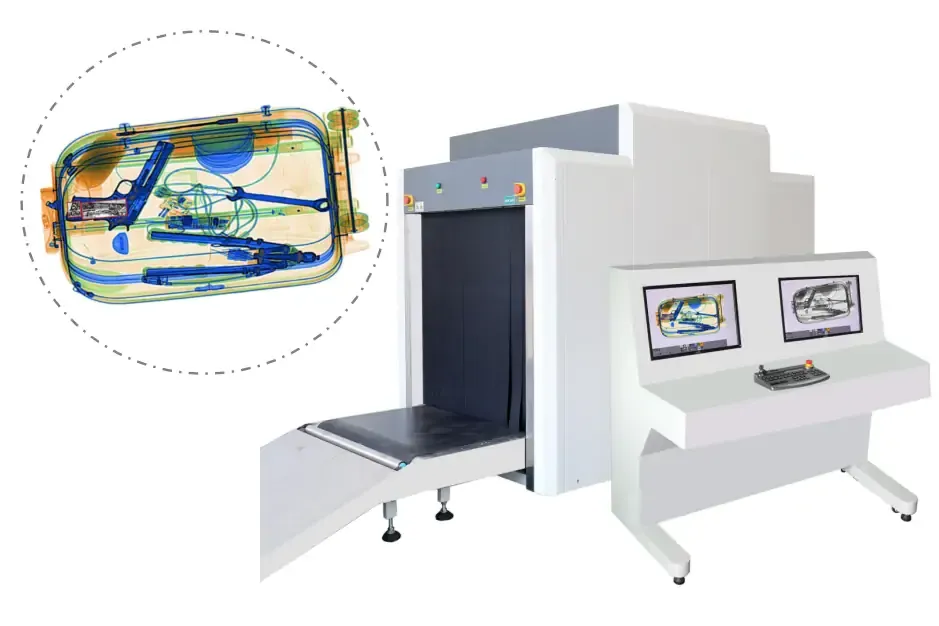

BIG size luggage Xray screening baggage scanner for airport, boarders etc
*Excellent image presentation
*Windows 7, 64-bit operation system
*Designed to screen BIG size luggage for to find weapons, explosives, drugs and other contraband
High Light
-
Powerful image dealing ability;
-
Accurate Z7, Z8, Z9 mark for explosive and narcotics;
-
Windows 7, 64-bit operation system；
-
Automatic save scanned image;
-
Friendly operation System;
-
Reliable performance.
Technical characteristics
-
Duel energy penetration system;
-
TIP program;
-
Clear and distinct image;
-
Scanned imaged can zoom up to 64 times;
-
Partly zoom up to 3 times;
-
13 kinds of image processing functions and 6 kinds of pseudo color;
Specifications
|
Tunnel size |
1010mm*1010mm (W*H) |
|
Conveyor speed |
0.20m/s |
|
Conveyor height |
300mm |
|
Maximum load |
200kgs(evenly distributed） |
|
Wire resolution |
40AWG（dia 0.0787mm wire） |
|
Spatial resolution |
Level: dia1.0mm copper wire, Vertical: dia1.0mm copper wire |
|
Penetration(steel) |
38mm guarantee, 40mm typical |
|
Penetration resolution |
32AWG（0.202mm) |
|
Display |
21.5 inch color LCD monitor，high resolution: 1280*1024 |
|
X Ray generator anode voltage |
140-160Kv |
|
Cooling cycle |
Oil Cooling /100% |
|
X ray dose per inspection |
<1.0 μSv |
|
Image process |
Black and white / color, anti-color, high energy penetration, super enhancement, histogram equalization, forced scanning, magnifying glass, image pull back / front pull, image storage |
|
Material classification |
Organic：orange；Inorganic：blue；Mixed and light metal：green |
|
Section and magnification |
Any area selection，1 -32 times magnification, support continuous amplification |
|
Image pull back |
Can pull back 50 images |
|
Storage capacity |
Can store at least 100000 pcs image |
|
X ray leakage |
<0.5 μSv /h(at a distance of 5cm From external housing），meet all international and domestic health and safety standards |
|
Film safety |
guarantee ASA/ISO1600 Film |
|
Software system |
F1,F2,F3 programmable key，high density alarm，TIP；date/time display， baggage Count， User management, System work timing, Radiation timing,self-inspection while power on, save and search image, automatically maintenance and diagnosis system, image recognition training. |
|
Optional function |
Video surveillance system, LED prompt screen, bi-direction scan, voltage stabilizer, UPS back up |
|
Physical size |
3595.5*1685*1795mm (L*W*H) |
|
Weight |
1480kgs |
|
Operation temperature/Humidity |
0℃+/-3℃～+40℃+/-2℃ 5%～95%（non-condensing） |
|
Storage Temperature/Humidity |
40℃+/-3℃～+60℃+/-2℃ 5%～95%（non-condensing） |
|
Operation power |
220VAC (+/-10%) 50+/-3HZ |
|
Power consumption |
2.0KvA |
|
Noise |
Less than 55db |
Applications
◆ Customs, ports, border stations, railway stations, military, express, postal, road industry, government agencies and other key places of continuous, long security checks
◆ Applicable to large places of traffic, scanning large size parcels
